Big Brake Systems |
|
Fully cast and CNC machined aluminum to ensure the highest quality; This long pursuit resulted in the development of the 2-piston, 4-piston, and the all new 6-piston caliper brake system with 2-piece directional vented discs (330mm and 355mm). Lightweight, rigid, and sophisticated in design, these brake systems enable superior brake modulation while improving overall pedal feel to ensure equal distribution of weight transfer when braking. To achieve this proportional brake balance, Rotora?s 2-piece cast aluminum calipers are fine tuned by increasing the clamp load to the optimal level while utilizing the stock master cylinder to retain overall front-to-rear brake bias. Designed and engineered to each specific application, these brake systems comes complete with a set of 2-piece vented drilled and/or slotted oversize discs, pre-assembled calipers (2, 4, or 6-piston), ceramic competition race pads, stainless steel brake lines (D.O.T. compliant), carbon steel mounting brackets (SC45), and all necessary hardware. All Rotora brake systems are direct bolt on replacement of the stock front brake system with minimal modifications required (ex: some applications requires the removal of the stock dust cover shield).
Street Challenge Big Brake System For Street-Track
Call For Brake Kit, Rotor, Pad or SS Brake Line Fitment and Pricing
Rotora Big Brake Price List
Front - 4-PISTON 330X30 2-PIECE (13'' rotor)
Front - 6-PISTON 330X30 2-PIECE (13'' rotor)
Front - 6-PISTON 355X32 2-PIECE (14'' rotor)
Rear - 2-PISTON 330X30 2-PIECE (13'' rotor)
Rear - 2-PISTON 355X32 2-PIECE (14'' rotor)
Rear - 4-PISTON 330X30 2-PIECE (13'' rotor)
Rear - 4-PISTON 355X32 2-PIECE (14'' rotor)
Impreza 1992+
Forester 2002+
Legacy 1990+
Legacy Outback 2000+
Baja 2003+
Tribeca 2006+
Rotors
Street / Track
Track / Full Race Pads
Pads
Street / Track
Track / Full Race Pads
Stainless Steel Brake Lines
|
|
Stop

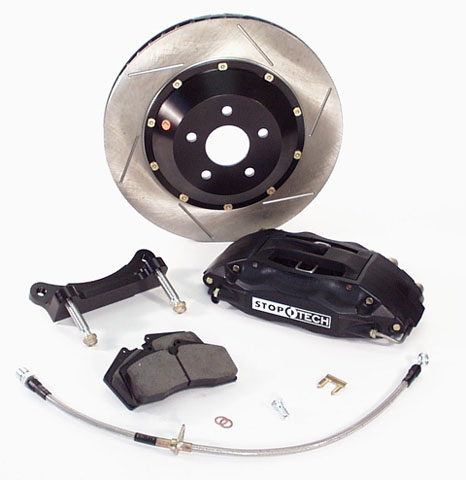

Tech Brake Kit |
FRONT
BRAKES
ST-40
(4-piston front Caliper)
-One
pair of front StopTech calipers with StopTech caliper bridge
(Black anodized)
-One pair of front two-piece StopTech 328x28 Slotted or cross
drilled rotors
-One pair of front braided Stainless Steel brake lines
-One set of front High Performance Axxis Street brake pads
All reviews are correct, this is one of the best kits you can
get for your Subaru WRX. Fits most 17" wheels and above.
This kit comes with everything you need! Available in red, blue,
black, yellow, or silver calipers (blue & Yellow add $200).
You can choose between slotted or cross drilled rotors.
Stop
Tech Front Brake Kit Drilled Rotors or Slotted Rotors - $1829.99
per set
REAR
BRAKES
ST-22
(2 Piston Rear Caliper)
-
Made of billet aluminum
-
All finished parts are 100% tested to a pressure of 2500psi
-
Uses standard FMSI 961 Pad
-
2 piston opposed design
-
May be added to cars with existing front StopTech kits
-
Piston size adjusted for the application, just like our front
calipers
-
Dust boots are standard
-
Weight: 4.4 lbs. (2 kg) unloaded
Rear
brake kit includes lines, calipers, pads, and rotors. Fits 02-on
Subaru WRX with rear disc brakes. Available in red, blue, black,
yellow, or silver calipers (blue & Yellow add $200). Cross
drilled or slotted rotors available.
Stop
Tech Rear Brake Kit Drilled Rotors or Slotted Rotors - $2329.99
per
set
|
Subaru
Front 4 Pot Brakes
|
Stop
in a hurry with these STi 4 pot front brakes. Kit comes with
2 calipers, slide pins, rattle clips, and a set of pads. Uses
your existing rotors. Comes in the color shown only. Will not
fit under stock wheels. Wheels must be 16x7 inch or larger
$899.99
per set
|
Stop

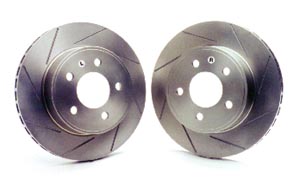

Tech Slotted Rotors |
OEM
replacement rotors for your stock factory brakes for a 2002-03
Subaru.
Unidirectional slotting (left and right), to increase pad bite,
reduce fade and deliver exceptional braking performance.
Slots
continually de-glaze the brake pads, improving efficiency and
reducing rotor scoring. They even out-wear across the brake
pad faces, increasing the effective contact area and extending
rotor life.
Slots
help dissipate water when driving in poor weather, as well as
pump away dust and dirt.
Slotting
also combats "out-gassing", where gas (from the pad
bonding agents) can form a cushion between pad and rotor, greatly
reducing braking power.
Provide
a cost effective solution to improve the stopping performance
of vehicles which are "under-braked"
Front Rotors $289.99 set
Rear Rotors $289.99 set
|

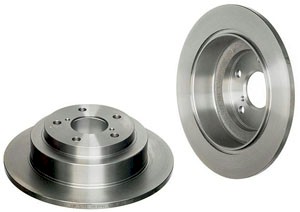

02-03 Rear Brake Upgrade |
This kit will convert your 02/03 to the larger solid rotors.
With a larger rotor, you increase the effective swept area of
the brakes for better braking performance. Kit comes complete
with 2 rotors and 2 caliper brackets.
$389.00
per set
|
| EBC Green Stuff Brake Pads Front WRX , RS, Legacy, and Forester |
Triple award winning EBC Greenstuff pads are now available in an upgraded AF44/78 formulation for most European cars, again ECE R-90 compliant, yet the new formulation offers higher thermal conductivity and therefore reduces incidents of brake judder, better cold braking and better wear life over previous EBC green formulations. EBC Greenstuff is an excellent fast A road pad for all road legal cars, but is not for track day use. A high friction Kevlar based organic pad with very low metallic content, that comes on strong from first application of the brake pedal without disc damage or unsightly black. Standard fitment grade for highway use. It can also be used for track days & race. Use on light vehicles. Fits 2002 WRX, 1998-2001 Impreza RS, 1996-2002 Legacy, 1998-2002 Forester.
EBC Green Stuff Brake Pads Front $189.99 front
EBC Green Stuff Brake Pads Front $159.99 rear
|
EBC Red Stuff Brake Pads Front and Rear |
An ECE R90 approved pad, legal for street use yet capable of stopping you from regular 100mph plus runs without fade. The pads just keep getting better the more abuse you give them. Semi Metallic high performance race material. Although a race compound, it can be used on the street returning from track days, etc...although there is a lower bite. Always switch back to street pads for continued highway use. Fits 2002 WRX, 1998-2001 Impreza RS, 1996-2002 Legacy, 1998-2002 Forester.
EBC Red Stuff Brake Pads Front $199.99 front
EBC Red Stuff Brake Pads Front $169.99 rear
|
EBC Yellow Stuff Brake Pads Front and Rear |
High durability full race formulation which is currently being used on cars in race use. Yellow coded pads should NEVER be used on vehicles for highway use. RACE ONLY. Fits 2002 WRX, 1998-2001 Impreza RS, 1996-2002 Legacy, 1998-2002 Forester.
EBC Yellow Stuff Brake Pads Front $209.99 fronts
EBC Yellow Stuff Brake Pads Front $179.99 rears
|
Subaru Impreza RS Axis Ulimate Front Pads |
The AXXIS Ultimate is the newest high performance street pad to be introduced into the North American market from Bendix Mintex in Australia. Building on years of success with their world class Metal Master pads, Bendix Mintex formulated the Ultimate pad compound to compete with the best performance street pads in the world. The AXXIS Ultimate pads feature a special Kevlar® and ceramic strengthened formula with a high co-efficient of friction and very high temperature fade resistance. As with all AXXIS pads, the Ultimate pad is a non-asbestos formula. Designed for extreme high performance street driving and hard braking applications, Ultimate pad users will benefit with extreme stopping power and high resistance to brake fade at high temperatures. Consistent throughout it’s operating temperature range, you’ll get dependable, predictable stops time after time.
Subaru Impreza RS Axis Ulimate Front Pads $119.99
Subaru Impreza RS Axis Ulimate Rear Pads $99.99
|
|
Stop
Tech Brake Lines
|
Stop Tech Stainless Steal brakelines for your WRX. These will work with the stock brake setup.
Stop Tech Brake Lines : front and rear $169.99
|
|
